Architecture Diagrams

This page centralizes architecture diagrams used during development.

Frontend to Backend Access

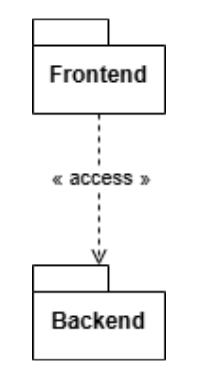

This diagram shows the top-level dependency where the frontend accesses backend services.

Frontend Global View

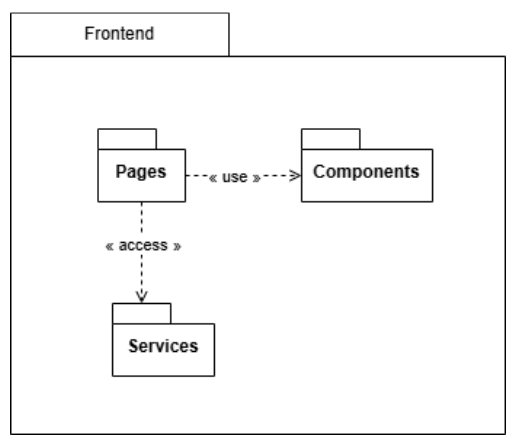

This view highlights the frontend layering:

• Pages use Components
• Pages access Services

Frontend Services Interactions

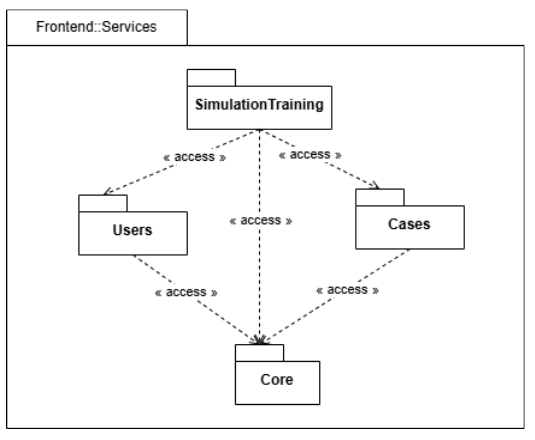

This diagram focuses on frontend service orchestration:

• SimulationTraining coordinates access to Users, Cases, and Core
• Users and Cases also access Core

Backend Services Interactions

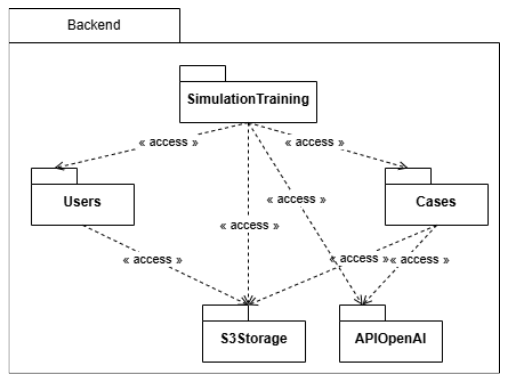

This diagram presents backend collaboration:

• SimulationTraining accesses Users, Cases, S3Storage, and APIOpenAI
• Users and Cases also interact with storage and AI API

Simulation Training Core Flow

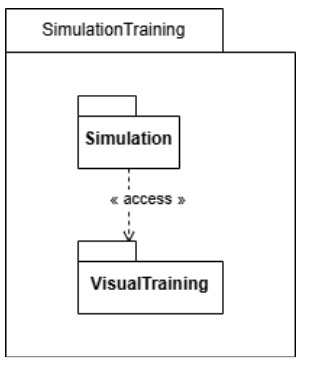

This diagram shows the core flow inside SimulationTraining, where Simulation accesses VisualTraining.

Simulation Training Extended Flow

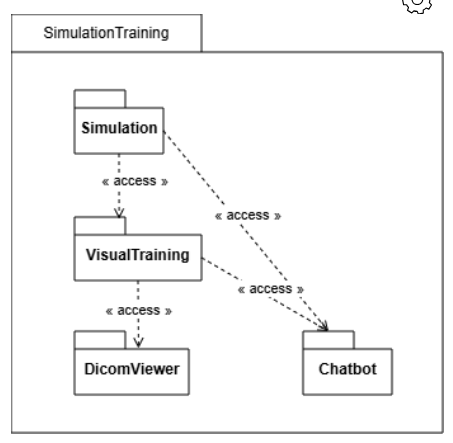

This extended flow shows additional dependencies:

• VisualTraining accesses DicomViewer
• Simulation and VisualTraining both access Chatbot
